CURT 51170 brake controller • Spectrum trailer brake controller • proportional trailer brake control • dash mount brake controller • electric trailer brake controller
The CURT 51170 Spectrum Trailer Brake Controller is a clean, modern proportional brake control designed for drivers who want smooth trailer braking without a bulky controller mounted under the dash. The Spectrum uses a separate hidden main module and a compact dash-mounted rotary knob, giving the cab a clean OEM-style appearance while still providing precise brake control for trailers with electric brakes.

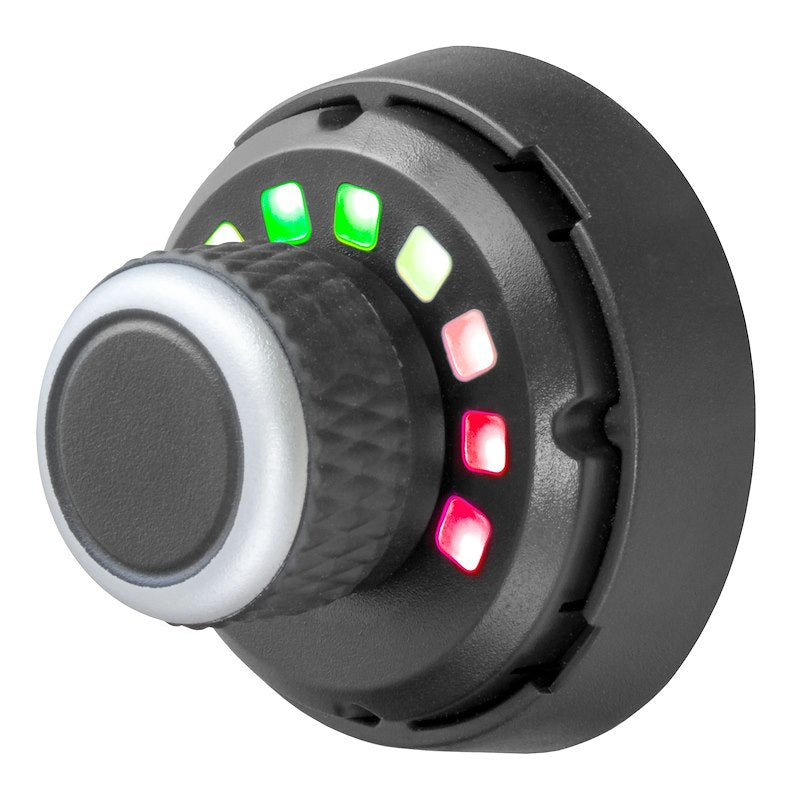

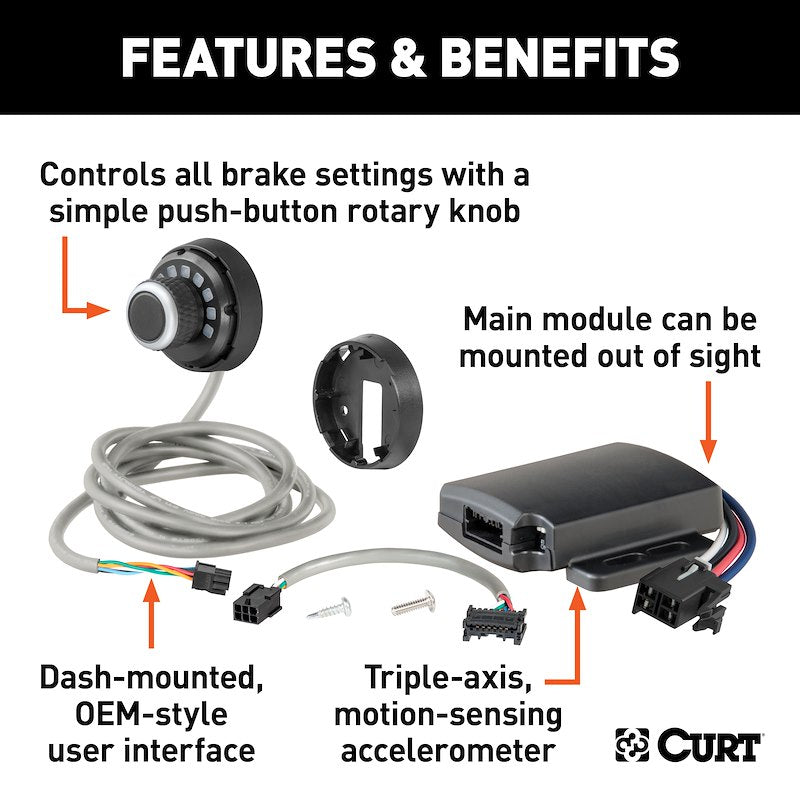

Unlike traditional box-style brake controllers, the CURT Spectrum keeps the main control module mounted out of sight behind the dash. The visible control is a low-profile rotary knob with a push-button center and a 10-bar tri-color LED indicator. This allows the driver to adjust brake output, monitor braking activity, and access manual override while keeping the dash professional and uncluttered.

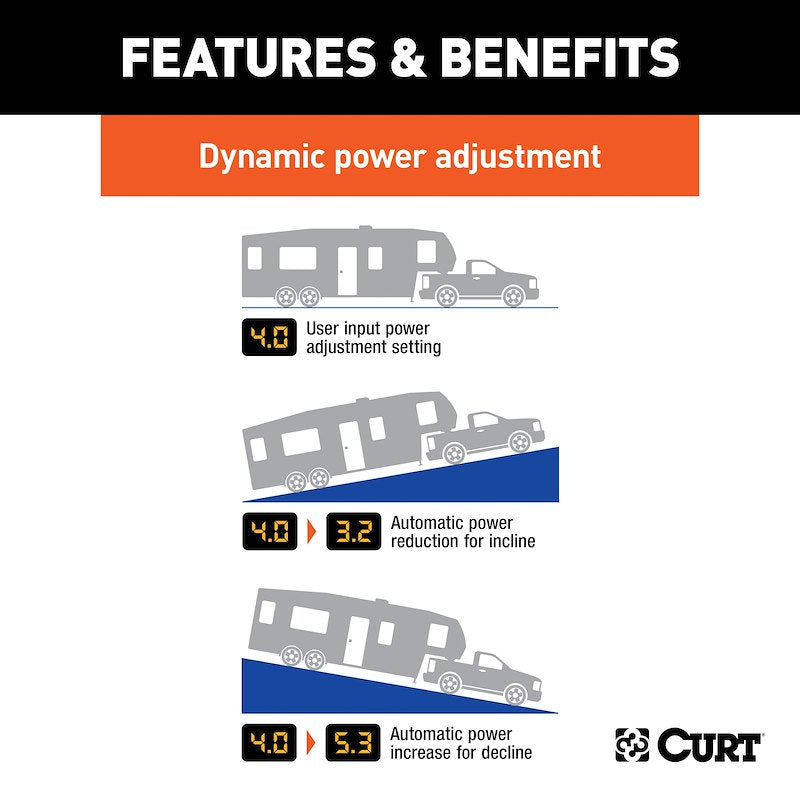

This controller uses a triple-axis accelerometer to detect vehicle movement and apply trailer brakes in proportion to the tow vehicle’s braking. That means smoother, more responsive stops compared to basic time-delay controllers. Automatic leveling and calibration also make setup easier, helping eliminate the need for constant adjustment after installation.
Designed for trailers with 1 to 3 axles, the CURT Spectrum 51170 is a strong option for towing utility trailers, enclosed trailers, car haulers, equipment trailers, livestock trailers, camper trailers, and other trailers equipped with electric brakes.
Key Features
- Proportional trailer brake controller for smooth, responsive braking
- Controls trailer brake settings with a simple push-button rotary knob
- Clean dash-mounted interface with OEM-style appearance
- 10-bar tri-color LED display for brake output and status indication
- Separate main module mounts out of sight behind the dash
- Triple-axis motion-sensing accelerometer for accurate braking response
- Automatic leveling and calibration help simplify setup
- Compatible with trailers using 1 to 3 axles
- Fully functional in reverse
- User-selectable power output and trailer brake light activation
- Manual override accessible with the press of a button

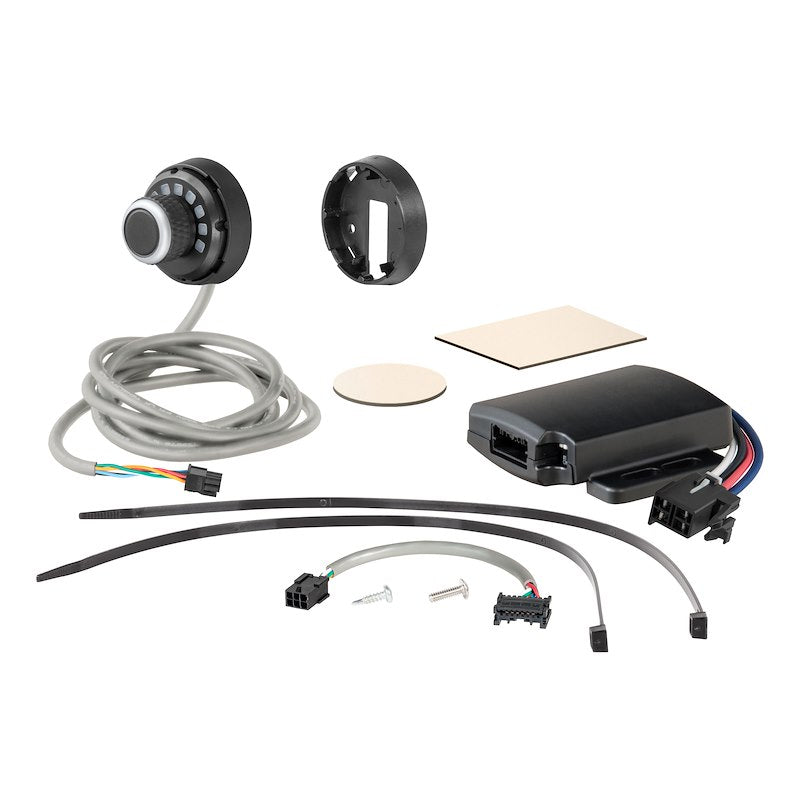

- Two installation options: drill mount or surface adhesive mount
- Built-in reverse polarity and short-circuit protection
- Limited lifetime warranty from CURT
Technical Specifications
- Brand: CURT
- Part Number: 51170
- Product Type: Trailer Brake Controller
- Series: Spectrum
- Brake Controller Type: Proportional
- Axle Capacity: 1 to 3 trailer axles
- Brake System Compatibility: 2 to 6 brake systems
- Display Type: 10-bar LED indicator
- Interface Style: Dash-mounted rotary knob
- Accelerometer: Triple-axis motion sensing
- Leveling: Automatic
- Reverse Function: Fully functional in reverse
- Smart Technology Compatible: No
- Trailer Disconnect Alarm: No
- Wiring Harness Included: No
- Estimated Installation Time: Approximately 1 hour
- Mounting Style: Drill mount or adhesive surface mount
- Warranty: Limited lifetime warranty
Applications / System Use
The CURT 51170 Spectrum Brake Controller is used to control electric trailer brakes from inside the tow vehicle. It is commonly used with:
- Utility trailers
- Enclosed trailers
- Car haulers
- Equipment trailers
- Livestock trailers
- Camper trailers
- Boat trailers with electric brake systems
- Work trailers and general towing applications
This brake controller is ideal for drivers who want reliable trailer braking performance while keeping the vehicle interior clean and factory-looking.
Important Fitment Note
This brake controller does not include a wiring harness. A vehicle-specific CURT brake controller harness or universal wiring may be required depending on the tow vehicle. Always verify wiring requirements before installation.
